FM200 cabinet fire extinguishing system manufacturer direct sales,
high quality and low price

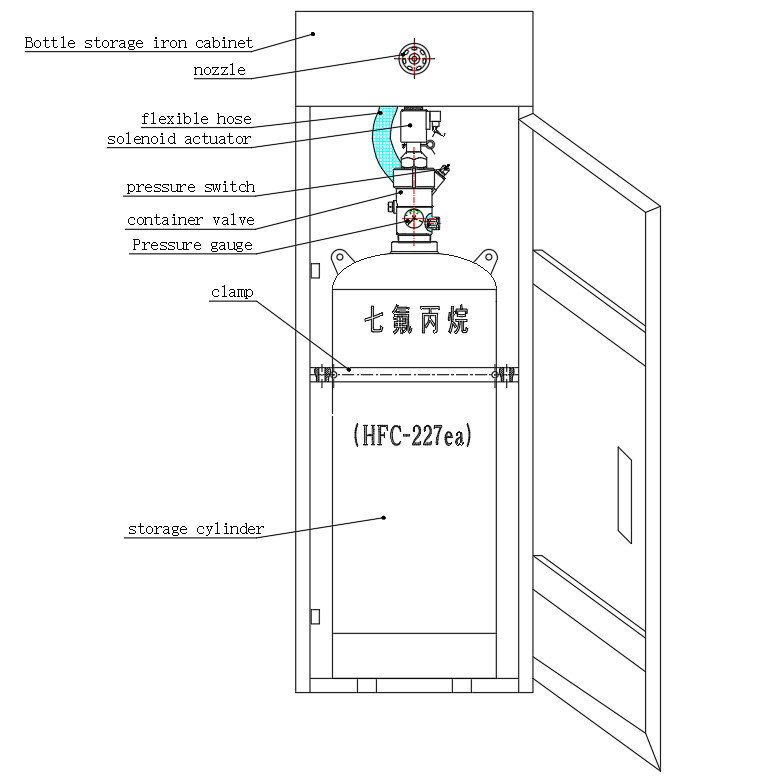

The FM200 cabinet fire extinguishing system by Ruigang Company is
available in single bottle and double bottle types, based on its
structural form. The FM200 cabinet fire extinguishing system is
designed with a linkage control function, which includes a complete
set of fire agent storage device and spray assembly. It features a
scientifically designed nozzle with a large coverage area,
integrating fire detection and alarm functions. This system offers
advantages such as small floor space requirement, easy
installation, and cost-saving benefits. It is suitable for
protecting areas like distribution rooms, transformer rooms,
instrument equipment rooms, small oil depots, computer rooms,
software libraries, communication rooms, archives and cultural
relics data rooms.
The FM200 cabinet fire extinguishing system has a large number of
advantages, and here is going to have a brief explanation:
1/ Swift response. Since there is no long distance transportation
of pipes, so fm200 gas can be directly discharged into protection
zone. Meanwhile, its spraying time is less than 8 second. So it
will save more time relatively when the fire happens.
2/ Convenient installation. Compared with pipe network system,
cabinet system would be relatively simple to conduct installation.
After installation of control panels and electric components, left
work is just to connect it with one cabinet fire extinguishing
device or devices. But one room should not be matched with more
than 4 pieces of it because of the limitation of the output current
of a control panel.
3/ Lower cost. Obviously, the price would be cheaper than pipe
network type for the protection zone which just needs one single
cylinder, because there is no need to consider about the expense of
pipes and pipe fittings, also the cost of manpower for this part.
Application field
Data Centers and Server Rooms
Telecommunication Facilities
Industrial Plants and Warehouses
Museums and Art Galleries
Power Distribution Room
Communication Room
and so on.
Technical Parameters:
| NO. | Specifications | Parameters |
| 1 | Cylinder capacity | 40Ltr,70Ltr,90Ltr,100Ltr,
120Ltr,150Ltr,180Ltr |
| 2 | Device model | GQQ40/2.5RG, GQQ70/2.5RG, GQQ90/2.5RG, GQQ100/2.5RG, GQQ120/2.5RG,
GQQ150/2.5RG,
GQQ180/2.5RG,GQQ70*2/2.5RG,GQQ90*2/2.5RG,GQQ120*2/2.5RG,GQQ150*2/2.5RG |
| 3 | Filling pressure | 2.5MPa |
| 4 | Max filling rate | ≤0.95kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Working temperature | 0℃~50℃ |
| 7 | Max working pressure | 4.2MPa |
| 8 | Discharge pressure | 5.6±0.28MPa |
| 9 | Proportion of protected zone | ≤500m² |
| 10 | Volume of protected zone | ≤1600m³ |
| 11 | Actuation | Automatic or manual start |
Cabinet Size
| Specification | Size(mm) | Volume(cbm) | Net weight (kg) |
| GQQ40/2.5RG | 500×450×1450 | 0.33 | 30 |
| GQQ70/2.5RG | 500×450×1450 | 0.33 | 27~31 |
| GQQ90/2.5RG | 500×450×1600 | 0.36 | 29~31 |
| GQQ100/2.5RG | 500×450×1700 | 0.38 | 31~36 |
| GQQ120/2.5RG | 500×450×1850 | 0.42 | 36~40 |
| GQQ150/2.5RG | 550×500×1850 | 0.51 | 40~43 |
| GQQ180/2.5RG | 620×570×1750 | 0.62 | 48~57 |
| GQQ70*2/2.5RG | 950*450*1450 | 0.62 | 42~45 |
| GQQ90*2/2.5RG | 950*450*1600 | 0.68 | 42~46 |
| GQQ120*2/2.5RG | 950*450*1850 | 0.79 | 50~55 |
| GQQ150*2/2.5RG | 1050*500*1850 | 0.97 | 59~64 |
Packing and Shipping:
The FM200 cabinet fire extinguishing system is carefully packaged
to ensure safe and secure delivery to our customers. We understand
the importance of protecting your investment and take all necessary
precautions to prevent any damage during shipping.
Packaging
The FM200 cabinet fire extinguishing system is packaged in a sturdy
wooden crate to provide maximum protection during transportation.
The crate is sealed and reinforced with straps to prevent any
movement or shifting during transit. Each component of the system
is individually wrapped in bubble wrap and placed in the crate to
further prevent any damage.
Shipping
We offer worldwide shipping for The FM200 cabinet fire
extinguishing system. Our team carefully coordinates with trusted
shipping companies to ensure timely and safe delivery to our
customers. The system is shipped via air or sea, depending on the
customer's location and preference.
Upon shipment, customers will receive a tracking number to monitor
the status of their order.
For international shipments, we take care of all necessary customs
and import procedures to make the process as seamless as possible
for our customers.
Final Inspection
Before shipping, each FM200 cabinet fire extinguishing system
undergoes a final inspection to ensure that it meets our high
quality standards. This includes checking for any defects or
damages and ensuring that all components are included in the
package.
